Shinobiz Display is having Complet range of LED Display Systems.

We have all outdoor, day light visible hibrightness led screens in p4, p5, p6, p8 and p10mm.

We have manufacturing these above LED screens In India with 5 year replacement warranty.

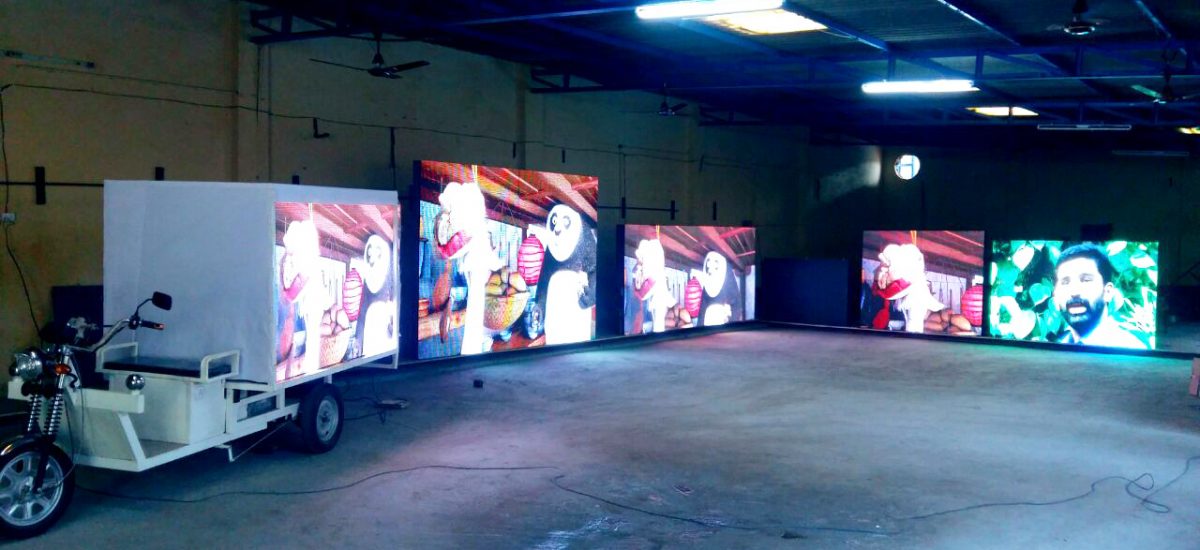

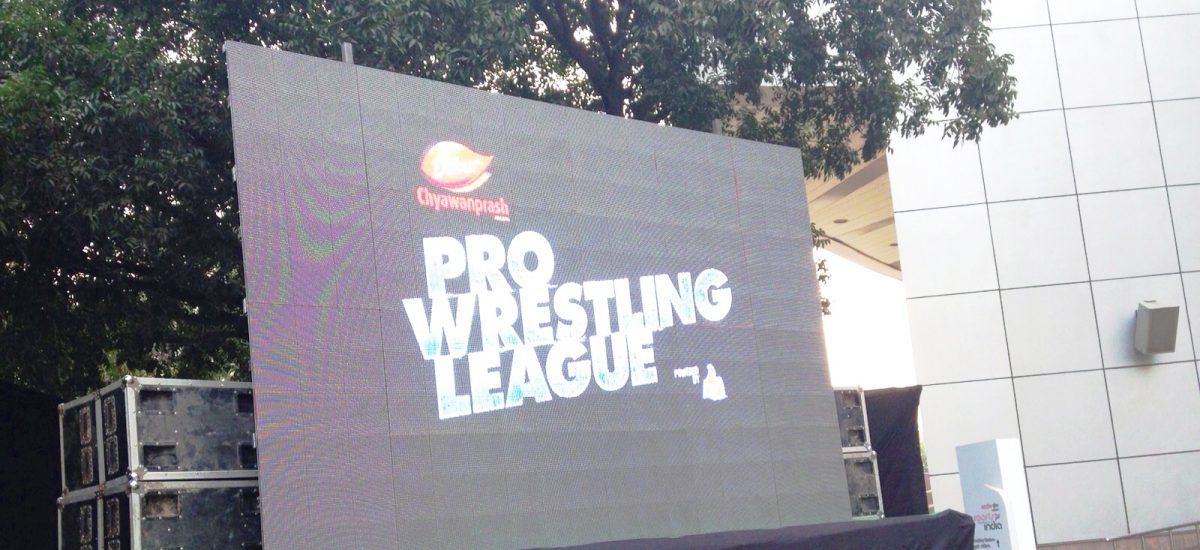

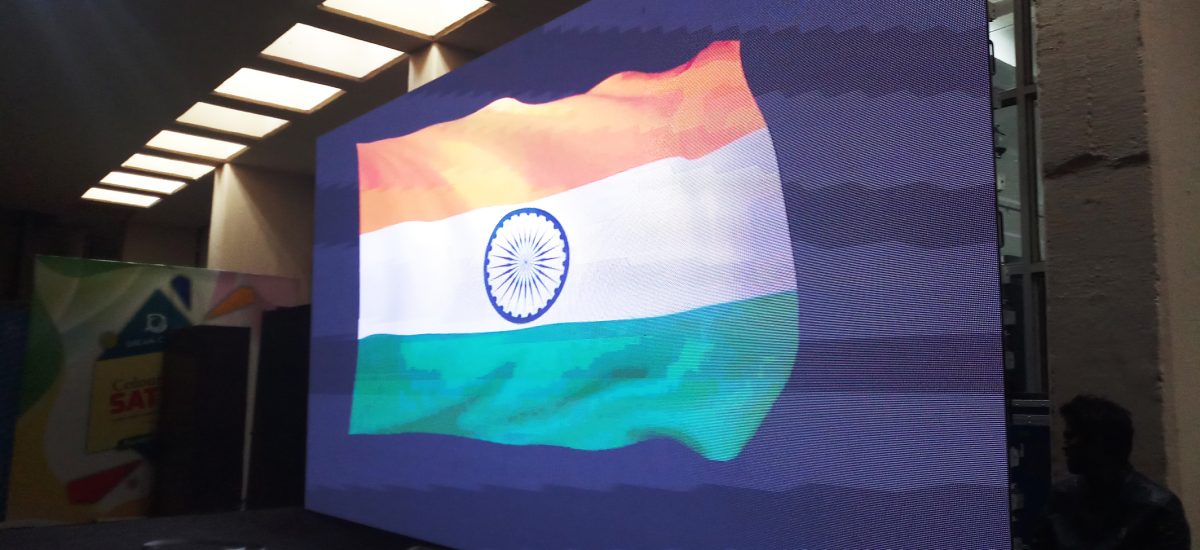

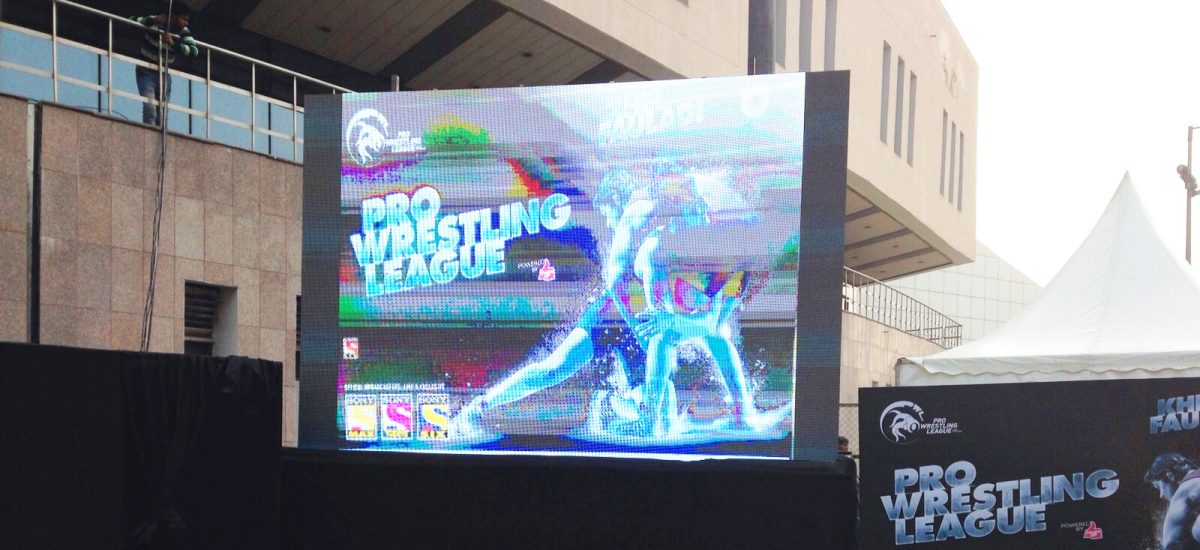

Most of Led screen are Installed in Airports, Malls, Markets, Led van supplier from diff diff state enjoy the gud quality product long life with reliable after sale service.

Our LEd screen specifications are given below

Elements Details Details Details Details
Specifications P10mm p8mm P6mm 4.9mm
Pixel pitch 10mm 8mm 6mm 4.9mm
Pixel density per cabinet 17920 pixles 28000 pixles 40320 pixles 71680 pixles
Module resolution 16*32dots 20*40 dots 32×32 dots 32×64
Module demmension 160*320mm 160*320mm 192*192mm 160*320mm
Pixel configuration 1R1G1B SMD outdoor SMD outdoor SMD outdoor
LED Chip and specification Silan/ Nichia Good quality Silan/ Nichia Good quality Silan/ Nichia Good quality Silan/ Nichia Good quality
Driving IC make and brand mbi 5024 mbi 5024 mbi 5024 mbi 5024
Brightness 8000 nits 8000 nits 8000 nits 8000 nits
IP rating(Front/Rear) IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54
Power supply make and brand G Energy with  1 year replacement warrenty G Energy with  1 year replacement warrenty G Energy with  1 year replacement warrenty G Energy with  1 year replacement warrenty
receiving cards make and brand GPRS Enabled GPRS Enabled GPRS Enabled GPRS Enabled
Brightness Control 256 Level 256 Level 256 Level 256 Level
Input power frequency 50 or 60 Hertz 50 or 60 Hertz 50 or 60 Hertz 50 or 60 Hertz
Input Voltage 110 ~ 240 Volt 110 ~ 240 Volt 110 ~ 240 Volt 110 ~ 240 Volt
Lifetime at 50% brightness 100000 hours 100000 hours 100000 hours 100000 hours
Operating Temperature -20 ~+50′ -20 ~+50′ -20 ~+50′ -20 ~+50′
Operating Humidity 10% ~ 90%
Control Distance online or CAT5 cable: <100 m; Single mode fiber: <10 km
Signal input format AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Operating system Window (2000/XP/Vista)
Warrenty – On site 1-5 years against manufacturing defaults
Cabinet Specifications P10mm p8mm P6mm 4.9mm
Physical resolution 96*96mm 80*80mm 96*96mm 130*130mm
Extandable size of the screen up to 200 ft width and 50 ft height yes yes yes yes
Dimension in (HxW) 960*960mm 640*640mm 576*576mm 640*640mm
protection Weather proof Weather proof Weather proof Weather proof
Weight 35kg 15kg 12g 12kg
Material Steel cabinets Die cast Die cast Die cast
LED Specifications P10mm p8mm P6mm 4.9mm
Max brightness >8000cd/sqm >8000cd/sqm >8000cd/sqm >8000cd/sqm
Viewing distance 10-100m 8-100m 6-100m 4-100m
Average power consumtion 900W/Display 600W/Display 600W/Display 600W/Display
Max power consumption 1500W/sqm 1500W/sqm 1500W/sqm 1500W/sqm
Lifespan 100,000hours 100,000hours 100,000hours 100,000hours
Failure dot ratio <0.0001 <0.0001 <0.0001 <0.0001
Water proof IP65(front); IP65(front); IP65(front); IP65(front);
IP54(rear) IP54(rear) IP54(rear) IP54(rear)
Other Perameters P10mm p8mm P6mm 4.9mm
Contents Detail
Viewing angle  Horizontal:110 degree;Vertical:75degree
Color display  10.7billion
Driving Method  Dynamic scan,Constant current driving
Refresh frequence  >1200HZ
Iuput signal  RF,S-VIDEO,rgb,RGBTV,YUT ,YC,COMPOSITION
Working environment  Temperature-20 C~ +60 C; Humidity:10%~95%
Input Voltage  AC110V/60HZ;AC220V/50HZ optional
